Chapter 4: Principles of Security Architecture and Zero Trust

Learning Outcomes:

• Analyze security requirements to determine optimal component placement.
• Design systems that incorporate load balancing, recoverability, and geographic considerations.
• Integrate Zero Trust concepts into system designs.
• Architect network segmentation and microsegmentation strategies.
• Apply deperimeterization concepts such as SASE and SD-WAN.
• Design information and data security models, including classification, labeling, and tagging strategies.
• Implement Data Loss Prevention (DLP) controls for data at rest and in transit.
• Evaluate the effectiveness of security controls using assessments, scanning, and metrics.

Introduction

The first three chapters covered governance, risk, and adversaries. This chapter shifts to architecture — where business intent becomes technical reality. Architecture is the discipline of deciding where controls belong, how trust is established, what must be segmented, where data may flow, and how the system holds together when something inevitably breaks.

Too often, controls get bolted on without architectural intent. A firewall is bought "because every enterprise needs one." A VPN is added because remote work demands it. A WAF is deployed because the auditor asked. But a reverse proxy behind the wrong trust boundary can hide the telemetry defenders rely on; a DLP tool sitting only on the email gateway misses every cloud channel employees actually use; an IDS pinned to a quiet segment produces elegant dashboards and almost no defensive value. Architecture is the answer to one question: where should each control live so that it meaningfully reduces risk without damaging the business?

That question forces a shift from operator thinking to architect thinking. Operators tune the controls in front of them. Architects decide which controls should exist, how they should interact, and what assumptions the environment is allowed to make. The exam expects the architect's perspective — placement, segmentation, recoverability, subject-object relationships, and the difference between a system that is merely hardened and one that is intentionally resilient.

The single most important architectural shift in modern cybersecurity is the move away from implicit trust. For decades, enterprises ran on a castle-and-moat model: get inside the perimeter and you were trusted. Cloud services, remote work, APIs, contractors, and mobile devices have dissolved that perimeter. In its place, architects now adopt Zero Trust: never trust by location alone, validate access continuously, and assume compromise is always possible.

In this chapter we walk component placement (firewalls, IPS, IDS, WAFs, proxies, API gateways, VPN concentrators, NAC), then resilience patterns (scaling, recovery, geographic distribution), then Zero Trust as a design philosophy (segmentation, microsegmentation, continuous authorization, SASE, attestation), and finally the data side — classification, labeling, DLP, hybrid boundaries, and the metrics that tell you whether the architecture is actually working. By the end you should be able to look at an enterprise environment and ask not just "what controls exist?" but "why are they placed there, what assumptions do they enforce, and what happens when those assumptions fail?"

How Do We Architect Resilient Systems?

The first responsibility of the security architect is deciding how the system should fail. That may sound strange. Most executives ask how to prevent failure, not how to engineer it. But resilient systems are not systems that never fail. They are systems that fail predictably, recover quickly, preserve integrity under stress, and do not let one broken component collapse the entire business.

Security architecture is therefore inseparable from resilience architecture. You cannot decide where to place a control unless you understand how traffic flows, where trust boundaries sit, how state is maintained, which assets must remain available, and which dependencies are allowed to break. A beautifully hardened application tier is meaningless if the identity provider is a single point of failure. A geographically distributed web platform is still fragile if the session store is pinned to one data center. A VPN may provide secure access, but if every remote employee depends on one overloaded concentrator, security has been achieved at the cost of availability.

When architects evaluate resilience, they are usually answering four design questions:

1. What must stay available? Some systems may tolerate delay; others directly stop the business when they fail.
2. What must remain trustworthy? Availability without integrity can be worse than outage.
3. Which dependencies are hidden? Identity, DNS, certificates, and secrets platforms often fail silently until everything else breaks.
4. Where can we safely degrade? Mature systems fail in a controlled way rather than collapsing all at once.

Component Placement and Configuration

Architects begin by thinking in layers. Not because the OSI model solves every problem, but because layered thinking helps identify where specific controls add the most value.

In practice, component placement decisions are usually driven by a small set of architectural criteria:

• Trust boundary clarity: Is this where trusted and untrusted traffic actually meet?
• Operational tolerance: Can the business tolerate latency, blocking, or aggressive inspection at this point?
• Visibility value: Will placing the control here generate useful telemetry or just noise?
• Blast radius reduction: If this layer fails, how much of the environment is exposed?

At the network edge, the most familiar control is the firewall. Firewalls enforce broad allow and deny decisions about traffic entering or leaving a trust boundary. They are excellent at policy enforcement, basic segmentation, and reducing unnecessary exposure. However, a firewall is not a universal answer. It does not inherently understand application logic, suspicious sequences of events, or business context. Its value is greatest when it sits on clear trust boundaries: internet-to-DMZ, partner-to-extranet, production-to-administration network, or user-segment-to-sensitive data zone.

An Intrusion Prevention System (IPS) is commonly placed inline where it can inspect traffic in real time and actively block malicious patterns. This makes it powerful, but also operationally sensitive. Misplaced IPS devices can become chokepoints, introduce latency, or generate outages if signatures are too aggressive. A mature design often places IPS capabilities where high-value traffic crosses major trust boundaries and where teams can operationally support tuning. By contrast, an Intrusion Detection System (IDS) is usually deployed out of band. It sees traffic and raises alerts but does not block. IDS placement is valuable where defenders want visibility without risking production impact, especially on sensitive east-west traffic that is often poorly monitored.

Key Point The difference between an IDS and an IPS is not just alerting versus blocking. It is a difference in operational risk. An IPS must be tuned to avoid breaking the business. An IDS must be integrated well enough that its alerts still matter.

Web Application Firewalls (WAFs) live closer to the application layer. Their job is not to replace the edge firewall but to understand web-specific threats such as SQL injection, cross-site scripting, malicious request patterns, and bot abuse. WAFs are most effective when placed in front of internet-facing applications, APIs, and portals that handle untrusted input. They are especially important where the organization must protect a business service that cannot be simply "closed off" from public traffic.

Proxies and reverse proxies are often confused because they both mediate traffic. A forward proxy stands in front of users, controlling or observing outbound requests. It is useful for acceptable-use enforcement, malware detonation, TLS inspection, and data egress controls. A reverse proxy stands in front of servers, protecting internal services from direct exposure, handling SSL/TLS termination, distributing traffic, and hiding backend topology. From an architectural standpoint, the placement question is not which proxy is better, but what side of the trust boundary needs mediation.

API gateways deserve their own mention because modern enterprises are increasingly API-driven. Many business processes that once relied on browsers and human users now run through machine-to-machine calls. API gateways enforce authentication, authorization, rate limiting, request validation, version management, and logging for those calls. Their placement should reflect that APIs are not just another web page. They are programmable trust boundaries. If a traditional web portal serves humans and an API serves mobile applications, partners, and internal automations, the API gateway becomes a primary security control rather than a convenience feature.

Virtual Private Network (VPN) concentrators and gateways are another classic placement problem. The insecure design is to treat the VPN as a magic door into the internal network. The mature design treats VPN as one control in a broader architecture. Users should not inherit broad internal access simply because they successfully built an encrypted tunnel. Instead, the VPN should be used to create a secure transport channel, after which Zero Trust policy, segmentation, device posture, and application-layer controls determine what access is actually granted.

Network Access Control (NAC) is often deployed at the switching or wireless edge where endpoints first attempt to join the enterprise environment. NAC evaluates device posture, identity, certificates, or policy compliance before assigning a level of access. This makes it architecturally valuable as an early gatekeeper. It does not replace segmentation deeper in the network, but it reduces the risk that unmanaged or unhealthy devices receive the same network treatment as known-good corporate assets.

Some of the most neglected placement decisions involve visibility tools rather than blocking tools. Network taps and collectors exist so the organization can observe what the environment is actually doing. A tap placed on the wrong segment produces elegant but irrelevant data. A collector that receives only perimeter logs while missing identity events, cloud telemetry, and east-west communications creates a false sense of coverage. Mature architectures deliberately place taps and collectors where they illuminate high-value paths: administrative networks, identity systems, cloud control planes, application tiers, and critical data repositories.

Even vulnerability scanners require architectural thought. Internal scanners belong where they can safely evaluate broad asset populations without being blocked or mistaken for attacks. External scanners belong where they reveal how the organization appears from the public internet. Both are architectural controls because they influence asset discovery, attack surface management, and validation. A scanner locked away in a forgotten management VLAN is as ineffective as an unused alarm system.

Finally, Content Delivery Networks (CDNs) change security architecture by moving some controls outward. A CDN can absorb distributed denial-of-service traffic, cache static content, shield origin servers, and provide edge-layer WAF features. But architects must remain careful. Moving capabilities to a CDN does not eliminate origin security requirements. It simply changes where some controls execute.

Availability and Integrity by Design

Security architects must think beyond blocking attacks. They must also preserve service delivery and data trustworthiness. This is where design decisions like load balancing, recoverability, interoperability, and geographic placement become part of security rather than mere infrastructure engineering.

Load balancing distributes work across multiple nodes so that one overloaded or failed system does not take down the service. In security architecture, load balancing also limits blast radius. If traffic can be shifted between healthy nodes, defenders gain the ability to isolate compromised instances without fully interrupting the service. The architect must decide whether the environment uses active-active or active-passive design. Active-active designs maximize availability but may increase synchronization complexity. Active-passive designs simplify failover logic but can hide dormant failure states if the passive environment is rarely exercised.

Recoverability is the architecture's ability to restore business function after failure. This requires more than backups. It requires clear recovery order, tested dependencies, replacement procedures, and realistic time objectives. A resilient application stack may require the identity provider, database, secrets store, and DNS layer to recover in a specific sequence. Architects who only protect the application servers without modeling dependency recovery are not designing for resilience; they are designing for optimism.

Interoperability matters because enterprise systems rarely stand alone. Identity providers, ticketing platforms, monitoring systems, API consumers, third-party integrations, and cloud workloads all depend on each other. Interoperability becomes a security issue when a control is so isolated that it cannot share events, enforce consistent decisions, or support coordinated response. For example, a DLP solution that cannot consume classification tags or share alerts with the SIEM may be technically deployed but strategically disconnected.

Geographic considerations also shape resilience. Placing all critical services in a single region may simplify operations, but it makes the enterprise vulnerable to regional outage, legal disruption, and concentrated attack. Multi-region or multi-site deployment improves resilience, but it also introduces complexity around latency, data sovereignty, key management, and failover consistency. Architects must weigh the security benefits of distribution against the operational and legal complications it creates.

Warning Multi-region design is not automatically resilient. If every region depends on a single global identity service, certificate authority, or management plane, the architecture may still have a hidden centralized point of failure.

Scaling choices matter as well. Vertical scaling adds more capacity to a single node. It is simple, but it can amplify failure impact because the environment depends on larger, fewer systems. Horizontal scaling distributes workload across many nodes. It improves elasticity and fault tolerance, but demands stronger orchestration, state management, and telemetry. Security architects typically favor designs that can horizontally scale critical front-end workloads while carefully controlling where sensitive state resides.

This leads to the question of persistence versus non-persistence. Persistent systems maintain state over time. Non-persistent systems are rebuilt frequently or discarded after use. Non-persistent compute is attractive because it limits attacker dwell time and simplifies recovery, but not every workload can be stateless. Architects therefore decide where to preserve state and where to aggressively avoid it. Temporary web nodes may be non-persistent, while database clusters remain persistent but heavily segmented and monitored.

Example Consider a retail platform with internet-facing web servers, an API tier, and a payment database. The architect may choose horizontally scaled, non-persistent web servers behind a CDN and WAF; a segmented API layer behind an API gateway; and a tightly controlled, persistent database cluster with separate recovery procedures and stricter administrative access. The system is resilient not because every tier is treated the same, but because each tier is designed according to the kind of state and risk it carries.

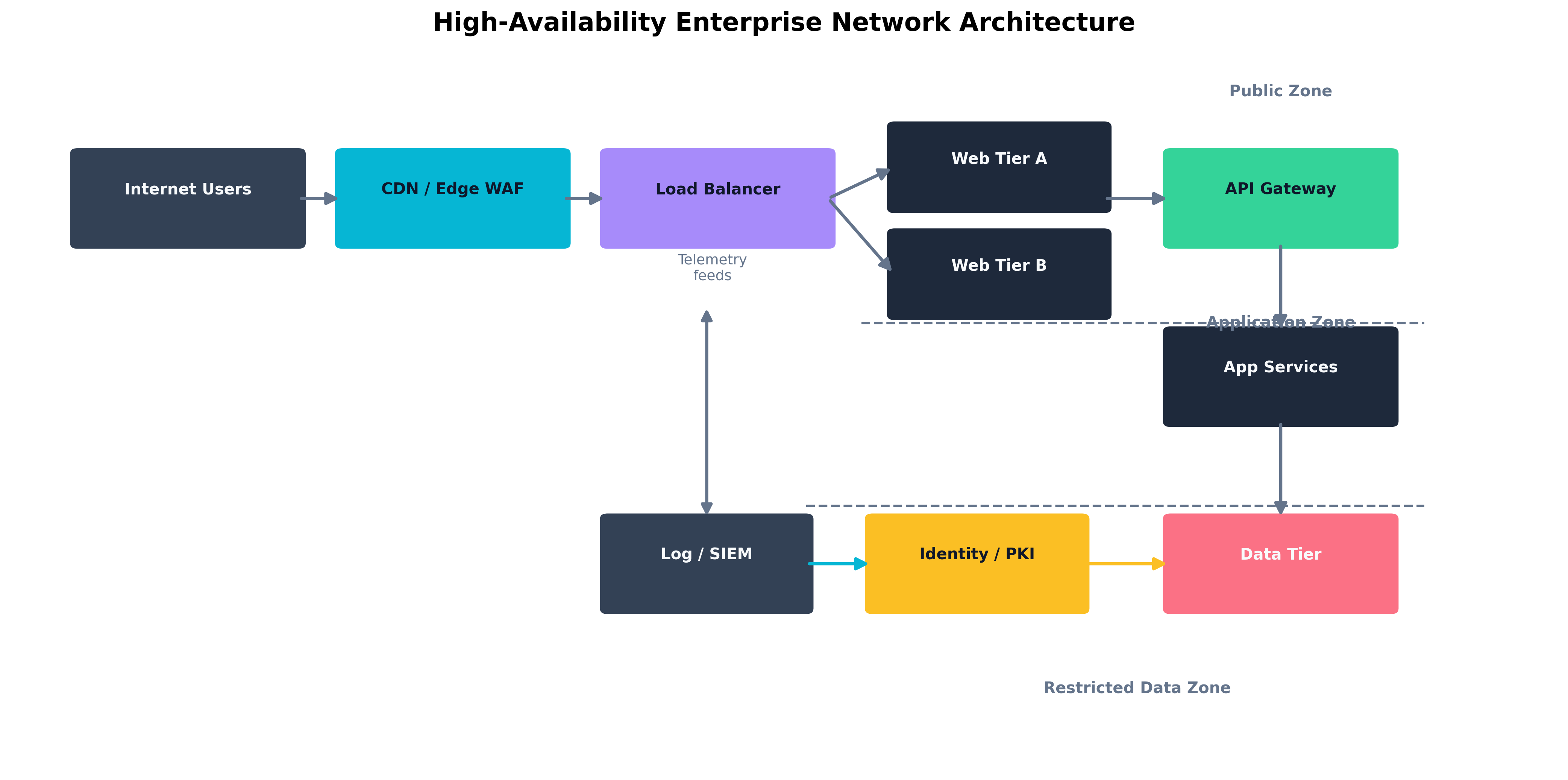

Figure 4.1: A resilient enterprise design using layered controls, segmented trust zones, and failover-capable service tiers.

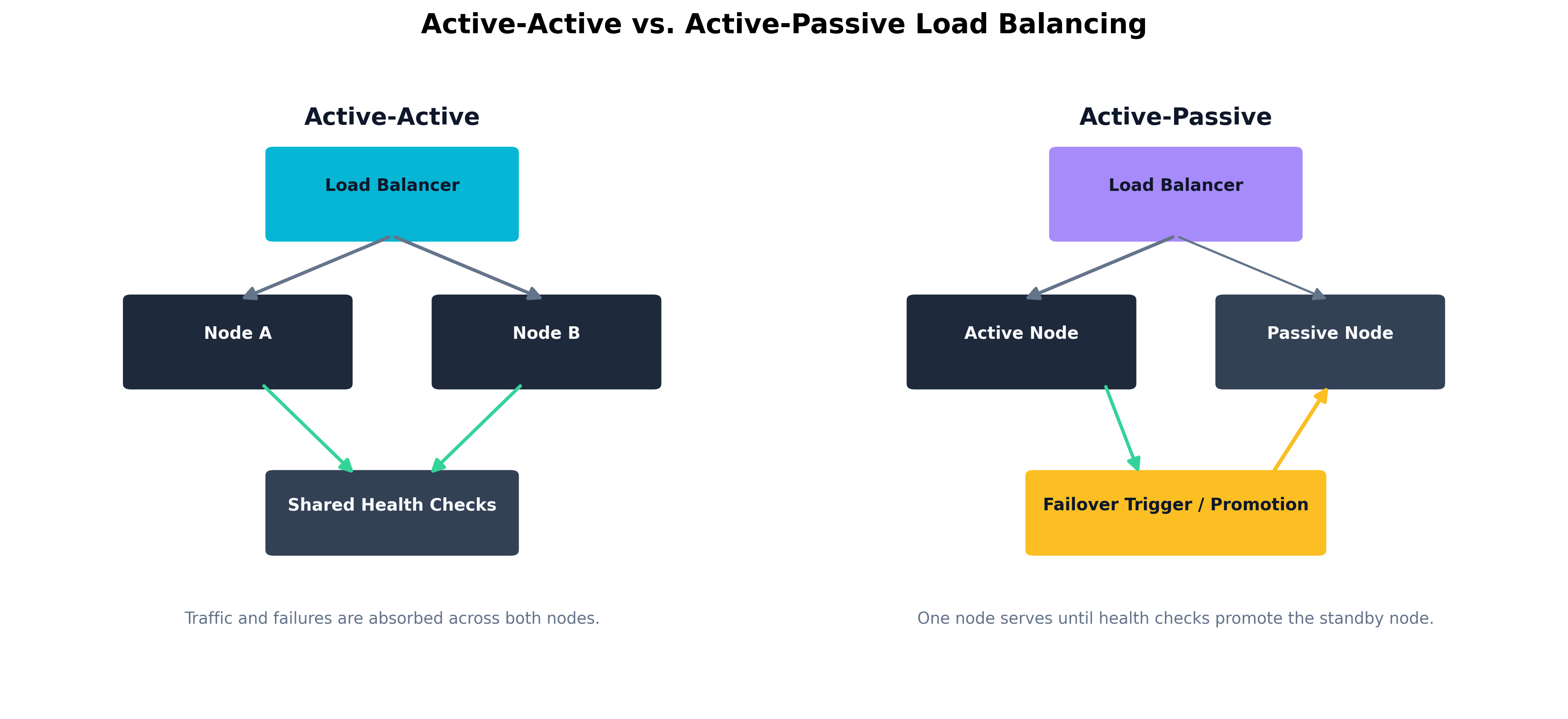

Figure 4.2: Comparing active-active and active-passive designs for resilient service delivery.

What Does Zero Trust Actually Mean?

Zero Trust is one of the most abused phrases in cybersecurity. Vendors use it to market endpoint tools, identity suites, proxies, microsegmentation products, SASE platforms, and cloud access controls. Executives use it to signal modernity. Auditors use it to ask whether the organization has adopted contemporary architecture. The result is that many teams think Zero Trust is a product they can buy rather than a design philosophy they must implement.

At its core, Zero Trust rejects one assumption: that location alone creates trust. In a traditional perimeter model, users inside the network are treated differently from users outside it. In a Zero Trust model, access is granted based on verified identity, device posture, context, policy, and the specific resource request. Trust is narrow, conditional, and continuously reevaluated.

Continuous Authorization and Context-Based Reauthentication

Traditional access models often authenticate once and trust for the rest of the session. Zero Trust architectures instead favor continuous authorization. This does not mean constantly annoying users with password prompts. It means the environment continuously evaluates whether the conditions that justified access are still true.

If a user authenticated from a compliant corporate laptop in New York, then thirty minutes later the same session begins issuing impossible travel signals, connecting through anonymizing infrastructure, or requesting unusually sensitive resources, a Zero Trust architecture should react. That reaction may be reauthentication, reduced privilege, step-up MFA, session isolation, or outright termination.

This is where context-based reauthentication becomes essential. Access decisions may change based on geographic location, device compliance, time of day, recent administrative actions, user behavior analytics, resource sensitivity, or whether the session is invoking APIs versus browsing a portal. The architect's task is not simply to turn on step-up authentication everywhere. It is to design meaningful decision points that improve security without collapsing usability.

Key Point Zero Trust does not eliminate usability trade-offs. It makes them explicit. Good architecture asks for stronger proof exactly when the risk justifies it, not at random moments that train users to resent security.

Subject-Object Relationships and Least-Privilege Design

Zero Trust becomes easier to understand when framed as a subject-object problem. A subject is the active requester: a user, device, service account, workload, or process. An object is the thing being requested: a file share, database, application, API, administrative console, or cryptographic key.

Traditional architectures often grant subjects wide, static privileges because they belong to a broad network zone or department. Zero Trust architectures instead ask: What exact relationship should this subject have with this object, under these conditions, for this duration?

This perspective leads directly to least privilege and just-enough access. A helpdesk technician may be allowed to reset passwords, but not read mailbox content. A build pipeline may deploy code to a staging environment, but not alter production firewall rules. A contractor may access one ticket queue from a managed device during business hours, but not the full internal network at night from a personal laptop.

When organizations fail to define subject-object relationships with precision, they rely on broad inheritance. That is how a compromised laptop becomes a stepping stone to domain administration, or how a third-party integration receives far more privilege than the business function actually requires.

Asset Identification, Management, and Attestation

Zero Trust depends on knowing what is requesting access. That means the architecture must include strong asset identification, reliable asset management, and some form of attestation for device or workload trust.

You cannot enforce narrow trust if you do not know whether the connecting endpoint is a managed corporate workstation, a personal tablet, a lab server, or a forgotten development VM. Asset inventories are therefore not just governance artifacts. They are architectural prerequisites. The same is true for certificates, device IDs, posture signals, and attestation frameworks that prove a system is in an expected state.

Attestation is especially important in distributed and cloud-native environments. A device or workload may need to prove that it booted correctly, is running approved code, holds valid certificates, or belongs to an expected management domain. Without attestation, architectures rely on claims rather than evidence.

Network Architecture: Segmentation, Microsegmentation, and Access Paths

Segmentation is one of the oldest security principles in enterprise design, but Zero Trust gives it a new level of precision. Instead of separating only broad zones like users, servers, and internet-facing services, architects increasingly use microsegmentation to isolate workloads, administrative paths, sensitive applications, and lateral movement routes.

At the high level, segmentation reduces blast radius by keeping different trust zones apart. User workstations should not share the same unrestricted path as domain controllers. Payment systems should not sit on the same flat network as marketing laptops. Development environments should not have transparent access to production databases.

Microsegmentation goes deeper. Rather than relying solely on subnet boundaries, it uses workload identity, labels, tags, or software-defined policies to define what traffic is permitted between specific systems. This is critical in virtualized and cloud environments where workloads can move faster than static network diagrams are updated.

Zero Trust also changes how architects think about VPN and always-on VPN. Traditional VPN design often creates a secure tunnel and then hands the user a broad internal network view. Zero Trust architectures treat VPN as transport rather than trust. Always-on VPN may be useful for managed endpoints that must receive policy and telemetry off-network, but it should still coexist with segmentation, application-level authorization, and contextual checks.

API Integration, Validation, and Modern Trust Boundaries

Modern systems are bound together by APIs. This means the attack surface is increasingly machine-driven rather than purely human-driven. Zero Trust architectures must therefore validate not only human sessions, but also API calls, service identities, tokens, and workload-to-workload relationships.

API integration becomes dangerous when teams assume internal APIs are safe by default. In practice, internal APIs often expose sensitive functions because developers assume only trusted callers can reach them. That assumption is precisely what Zero Trust rejects.

Strong API validation includes authentication, authorization, schema validation, input constraints, rate limiting, service identity verification, and logging tied to the caller identity. It also requires the architect to decide whether the API should be internet-facing, partner-facing, private, or reachable only through a service mesh or gateway. The technical mechanism matters, but the placement of the trust boundary matters more.

For most enterprise APIs, the minimum validation stack should include:

• Caller identity verification: The system must know which subject is making the request.
• Authorization by action: The subject should be allowed to invoke only the specific function required.
• Input and schema validation: Unexpected parameters, malformed payloads, and oversized requests should fail safely.
• Rate limiting and abuse controls: Public and partner-facing APIs should degrade gracefully under hostile load.
• High-value logging: Security teams need records of who called what, when, and with which result.

Deperimeterization, SASE, SD-WAN, and SDN

As workforces became remote and services moved to the cloud, the old perimeter eroded. This gave rise to deperimeterization: the realization that security can no longer depend on a single network edge. Controls must move closer to the subject, the object, and the interaction itself.

This is one reason organizations adopt Secure Access Service Edge (SASE). SASE combines networking and security functions, often delivering policy enforcement, secure web gateway capabilities, CASB features, zero-trust network access, and traffic optimization from distributed cloud points of presence. It is not a synonym for Zero Trust, but it is often an effective delivery model for Zero Trust-style enforcement in remote and hybrid environments.

Software-Defined Wide Area Network (SD-WAN) helps control how traffic moves across distributed sites, cloud resources, and branch offices. It can improve resilience and path selection, but from a security perspective its main value is policy consistency and visibility across varied routes. Software-Defined Networking (SDN) extends that logic to internal environments, enabling architects to define segmentation and path control in software rather than relying solely on static hardware configuration.

Warning SASE, SD-WAN, and SDN can improve control consistency, but they also centralize policy logic. If the policy model is weak, automation simply distributes the mistake faster.

Case Study Prospero and the Remote Workforce at Milan Island Telecom

Prospero, the senior network architect at Milan Island Telecom, inherited an environment built for a different decade. The company had once relied on a central headquarters, a single data center, and a thick perimeter of firewalls and VPN concentrators. After a rapid expansion into remote work and cloud-hosted customer platforms, the architecture had become strained. Employees connected from home, field technicians used tablets over cellular links, and contractors needed limited access to internal portals hosted partly in the cloud and partly on-premises.

The old model forced everyone through the same VPN concentrators. Once connected, users landed on the internal network with broad reachability. Performance was poor, helpdesk tickets were constant, and security incidents were escalating because compromised endpoints could see far too much of the environment.

Prospero redesigned the access architecture around Zero Trust principles. He introduced strong device identity and posture checks, moved public and partner-facing services behind application-specific gateways, and used microsegmentation rules to restrict service-to-service communication. Remote employees no longer connected to "the network" in a broad sense. They connected to the exact applications they were authorized to use. Highly privileged workflows required context-based reauthentication, and the administrative plane was isolated from normal user traffic.

To support distributed access, Prospero paired Zero Trust policy with a SASE platform and SD-WAN-aware branch design. Traffic no longer hairpinned inefficiently through headquarters simply because that was how the old VPN had worked. Instead, traffic was evaluated near the user, routed intelligently, and allowed only toward explicitly approved destinations.

The final result was not just stronger security. Latency fell, contractor access became easier to manage, and incident response gained far better clarity because each access decision was tied to a known subject, known device posture, and known destination object.

How Do We Enforce Security Boundaries?

Architects do not protect everything equally. They define boundaries around what matters, determine how those boundaries are crossed, and decide what evidence is required before crossing is permitted. Security boundaries are therefore not merely network constructs. They exist around data sensitivity, identity privilege, management planes, physical locations, business workflows, and third-party integrations.

Attack Surface Management, Hardening, and Defense-in-Depth

The first step in enforcing a boundary is understanding what is exposed. Attack surface management identifies externally reachable systems, internet-visible services, exposed APIs, cloud assets, public identities, and accidental exposures such as forgotten subdomains or open storage buckets. But identifying exposure is only the beginning. Reduction requires action: decommissioning unnecessary services, tightening configurations, patching vulnerabilities, removing legacy protocols, disabling risky default features, and shrinking administrative paths.

Hardening is the disciplined reduction of unnecessary functionality. It is not glamorous, but it is one of the highest-return architectural practices available. Every unused service, open port, permissive ACL, legacy cipher, or default credential is an invitation to attack. The architect's role is to ensure that platforms are designed for the least function required, not the maximum convenience possible.

Defense-in-depth means accepting that any single control can fail. If the WAF misses a payload, input validation should still help. If a workstation is compromised, segmentation should still block lateral movement. If a privileged account is abused, centralized logging and anomaly detection should still raise an alert. Defense-in-depth is not simply piling on tools. It is ensuring that each layer covers a different failure mode.

Legacy components require special attention. They often sit inside environments that have evolved around them, gathering exceptions and trust relationships over time. Architects must decide whether to isolate, wrap, replace, or instrument these systems. The worst option is usually to leave them in place while pretending they still fit the modern trust model.

Centralized Logging, Monitoring, Alerting, and Sensor Placement

Security boundaries are only meaningful if defenders can see them being crossed. That is why centralized logging is a design requirement, not merely an operational convenience. Architects should decide where identity events, administrative actions, API calls, DLP alerts, endpoint telemetry, and network events converge so that the security team can reconstruct activity across the entire kill chain.

Continuous monitoring matters because point-in-time reviews miss drift. Configurations change, integrations expand, certificates expire, and cloud resources appear faster than manual reviews can keep pace. Monitoring should therefore be attached to architectural choke points: identity providers, API gateways, privileged access paths, management networks, DLP boundaries, and externally facing services.

Alerting is valuable only when tied to architecture-aware context. A failed login on a public portal is not equivalent to a failed login on the domain administration plane. Ten thousand blocked WAF requests may be noise, while a single successful request into a sensitive administrative endpoint may be critical. Architects support effective alerting when they design zones, classifications, identities, and logging schemas that allow events to be prioritized intelligently.

Sensor placement is equally important. If sensors sit only at the perimeter, defenders miss lateral movement. If they sit only on endpoints, they may miss cloud control plane changes or API abuse. A mature architecture uses complementary viewpoints: endpoint sensors, network telemetry, identity logs, cloud audit trails, DLP events, and application-layer instrumentation.

Example An enterprise with strong perimeter controls but weak internal telemetry may stop many internet-borne attacks while still missing privilege escalation inside the domain. By placing sensors around the identity provider, administrative jump hosts, cloud management plane, and east-west traffic between application tiers, the organization turns the architecture itself into a set of observability checkpoints.

Information and Data Security Design

Architects protect data best when they stop treating all data as equal. This is the role of classification models, data labeling, and tagging strategies.

A classification model defines categories such as public, internal, confidential, regulated, restricted, or mission critical. The exact names vary, but the purpose is the same: the environment must understand that customer payment records, internal training slides, source code, and public marketing brochures do not require the same treatment.

Data labeling makes the classification visible to systems and users. Labels can be embedded in documents, emails, cloud objects, records, or database fields. Tagging strategies go even further by attaching machine-readable metadata that can drive automation. A tagged resource may automatically trigger encryption, retention rules, stricter sharing controls, or DLP policies.

The more mature the classification and tagging strategy, the more the architecture can enforce policy automatically instead of relying on human memory. This is especially important in hybrid environments where data flows across on-premises systems, SaaS platforms, APIs, mobile devices, and cloud storage services.

DLP at Rest, in Transit, and Discovery

Data Loss Prevention (DLP) is most effective when treated as a distributed architectural pattern rather than a single tool.

• DLP at rest protects data stored on file systems, object storage, databases, endpoints, and collaboration platforms. This may involve classification-based restrictions, encryption, access controls, and scanning for sensitive patterns.
• DLP in transit protects data moving through email, web traffic, APIs, chat systems, and cloud synchronization channels. This often involves gateways, CASBs, proxies, and egress inspection.
• Data discovery is the continuous search for sensitive information that the organization did not realize it had or did not realize it had placed in risky locations. Discovery is architecturally critical because unknown sensitive data cannot be reliably protected.

Architects must also design around user behavior. If the official process for sharing sensitive data is clumsy, users will create shadow processes. The result is that DLP fails not because the tool was weak, but because the architecture ignored business workflow.

That means DLP design should balance three competing needs:

1. Accurate identification of sensitive data. False negatives create breach paths.
2. Usable business workflows. If legitimate work becomes painful, users route around the control.
3. Actionable enforcement choices. The system should know when to block, warn, encrypt, quarantine, or simply log.

Hybrid Infrastructures and Third-Party Integration Boundaries

Modern enterprises are hybrid by default. Data and workflows move across on-premises systems, SaaS platforms, IaaS environments, branch networks, partner APIs, contractor endpoints, and mobile devices. Security boundaries must therefore be portable.

In a hybrid architecture, the challenge is consistency. A classification rule enforced in Microsoft 365 but not in a cloud storage bucket is not a strategy. A privileged access workflow enforced on-premises but bypassed in a SaaS administration portal is not a control model. Architects must define which policies follow the user, which follow the workload, and which follow the data.

Third-party integrations deserve especially careful handling. Every partner connection, outsourced workflow, webhook, SaaS connector, and B2B API is a boundary crossing. Least privilege, explicit contracts, logging, validation, and segmentation all matter. The goal is not to avoid integrations, but to prevent them from inheriting more trust than their business purpose requires.

Measuring Control Effectiveness

Architecture should be evaluated by evidence, not by diagrams alone. That is why control effectiveness must be measured through assessments, scanning, and metrics.

Assessments determine whether the intended design exists in practice. Scanning reveals exposed assets, misconfigurations, weak ciphers, outdated software, and drift from baseline. Metrics help leadership understand whether controls are reducing risk over time. Useful metrics might include segmentation policy violations, mean time to revoke privileged access, unclassified data percentage, WAF false-positive rates, privileged-session reauthentication rates, or the number of unmanaged internet-exposed assets.

Poor metrics focus only on volume. Good metrics focus on risk movement. A thousand blocked requests may say little. A 40% reduction in privileged accounts with standing administrative access says a great deal.

Case Study Google BeyondCorp and the Collapse of the Old Perimeter

A frequently cited example of modern security architecture is Google's BeyondCorp initiative. After realizing that employees increasingly worked from untrusted networks, and that the internal network itself could no longer be assumed safe by default, Google began replacing location-based trust with device and user-centered access decisions.

Instead of assuming that being on the corporate LAN granted broad trust, BeyondCorp evaluated user identity, device posture, and the requested application before granting access. Applications were exposed through access proxies and policy engines rather than hidden behind a monolithic VPN model. This was a foundational architectural shift: access became a function of verified context rather than physical network placement.

The lesson for security architects is not that every enterprise must copy Google's exact tooling. The lesson is that the perimeter is no longer the only meaningful security boundary. Identity, device trust, application gateways, telemetry, and policy engines must all work together to create enforceable boundaries in a world where users, devices, and workloads constantly move.

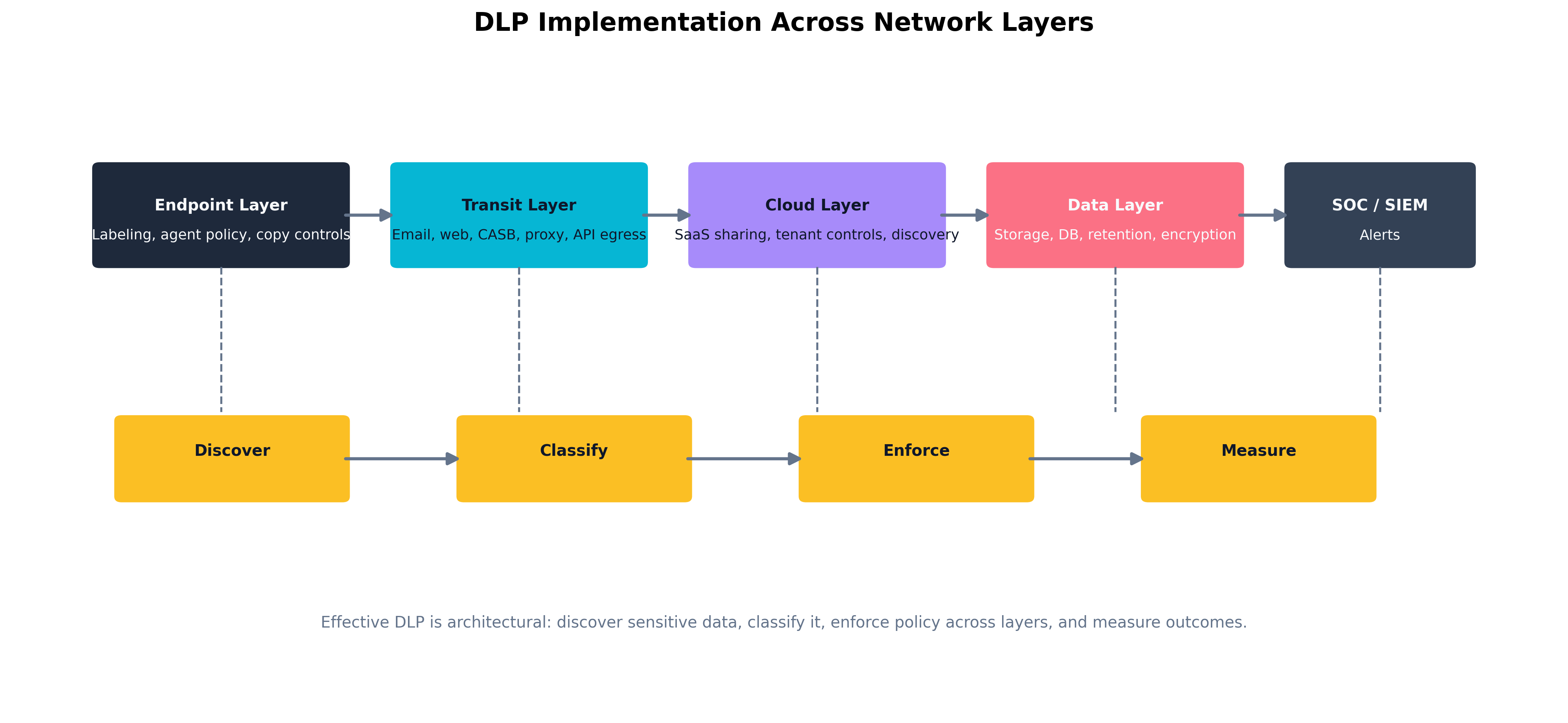

Figure 4.3: DLP controls applied across endpoint, gateway, cloud, and data repository layers.

Chapter Review and Conclusion

In this chapter, we moved from security theory into security architecture. We examined why control placement matters, how firewalls, IPS, IDS, WAFs, proxies, API gateways, VPNs, NAC systems, collectors, and CDNs each protect different portions of the trust model, and why resilience depends on explicit design choices around recoverability, scaling, state, and geography.

We then unpacked Zero Trust as a design philosophy rather than a marketing slogan. We explored continuous authorization, context-based reauthentication, subject-object relationships, segmentation, microsegmentation, API validation, attestation, SASE, SD-WAN, and deperimeterization. Most importantly, we emphasized that Zero Trust is not about distrusting everyone equally. It is about granting trust narrowly, conditionally, and with evidence.

Finally, we examined how to enforce security boundaries through attack surface reduction, centralized visibility, data classification, DLP, hybrid consistency, and measurable control effectiveness. Architecture succeeds when it reduces dependency on heroic operators and instead builds environments where the right outcome becomes the default outcome.

Key Terms Review

• Firewall: A control that enforces network traffic policy across a trust boundary.
• Intrusion Detection System (IDS): An out-of-band monitoring technology that detects suspicious traffic but does not block it directly.
• Intrusion Prevention System (IPS): An inline control that inspects and blocks malicious traffic in real time.
• Web Application Firewall (WAF): A control that protects web applications by detecting and filtering malicious HTTP or HTTPS traffic.
• Reverse Proxy: A server-side intermediary that receives inbound requests on behalf of backend services.
• API Gateway: A control point that authenticates, validates, meters, and logs API calls.
• Network Access Control (NAC): A technology that evaluates endpoint identity or posture before granting network access.
• Recoverability: The ability of an environment to restore business function after failure or compromise.
• Horizontal Scaling: Increasing capacity by distributing workload across multiple systems.
• Vertical Scaling: Increasing capacity by adding more resources to a single system.
• Zero Trust: An architectural approach that denies implicit trust based on location and instead validates access continuously.
• Continuous Authorization: Reevaluating whether access remains justified throughout the life of a session.
• Context-Based Reauthentication: Requiring stronger proof of identity when contextual risk changes.
• Subject-Object Relationship: The precise access relationship between a requester and a protected resource.
• Microsegmentation: Fine-grained traffic control between workloads, services, or applications.
• Deperimeterization: Moving away from sole reliance on a single network perimeter as the primary trust model.
• Secure Access Service Edge (SASE): A cloud-delivered architecture combining networking and security controls close to the user and workload.
• Attestation: Evidence that a device or workload is in a trustworthy state.
• Data Labeling: Marking data with visible or machine-readable indicators of sensitivity or handling requirements.
• Tagging Strategy: Applying metadata to resources or data so that automated controls can enforce policy.
• Data Loss Prevention (DLP): A set of controls designed to prevent sensitive data from being lost, exposed, or exfiltrated.
• Defense-in-Depth: Layering controls so that the failure of one safeguard does not automatically produce compromise.

Review Questions

True / False

1. A WAF is most effective when used to protect public-facing applications and API entry points that accept untrusted input.
2. Microsegmentation is designed to reduce lateral movement by allowing architects to control communication between specific workloads or services.
3. Horizontal scaling generally improves fault tolerance compared with relying on a single vertically scaled system.
4. Network Access Control (NAC) can help restrict unmanaged or noncompliant devices before they receive normal network access.
5. A CDN can absorb some denial-of-service traffic and shield origin servers, but it does not eliminate the need to secure the origin environment.
6. Tagging strategies are useful because machine-readable metadata can drive automated handling and protection rules.
7. API gateways are important because APIs are trust boundaries that require validation, authorization, and logging.
8. A mature security metric should ideally say something about risk movement, not just event volume.
9. Device attestation helps prove that a system is in an expected and trustworthy state before or during access.
10. A zero-trust-inspired architecture may still use a VPN, but the VPN should be treated as transport rather than automatic trust.

Scenario Multiple Choice

1. A retailer's auditor sees that the company has both an IDS and an IPS deployed. The architect explains they serve different operational risk profiles. Which statement best captures the difference? a. IDS is inline and blocks traffic; IPS is out-of-band and only alerts. b. IDS is out-of-band and alerts on suspicious traffic; IPS is inline and can drop traffic, carrying greater risk of disrupting production if mis-tuned. c. They are functionally identical, and "IPS" is just a marketing rename of IDS. d. IPS only inspects encrypted traffic; IDS only inspects plaintext.

2. An employee on a managed laptop authenticates to the corporate VPN from a coffee shop. Two hours later, the same session begins issuing rapid administrative API calls from a previously unseen geography while the laptop's posture check now reports a disabled EDR agent. What does Zero Trust expect the architecture to do? a. Trust the session, because the user already authenticated through the VPN. b. Reauthenticate based on context: posture has degraded and risk signals have changed, so step up verification or revoke access. c. Wait until the session expires naturally before reevaluating trust. d. Block all VPN users globally until the incident is investigated.

3. A SaaS provider's DLP program inspects email attachments at the corporate gateway and nothing else. Six months later, sensitive customer data is exfiltrated through an employee's personal cloud storage account synced via the browser. Which architectural lesson best explains the failure? a. The email DLP signatures were out of date. b. DLP must follow the data across all relevant layers — endpoint, web/CASB, cloud SaaS, and storage — not just the email perimeter. c. The employee should have used email instead of cloud sync. d. DLP is fundamentally ineffective and should be replaced with encryption alone.

4. A regional bank operates a single primary data center with a hot-standby site 30 miles away. After a regional power failure takes both sites offline simultaneously, the bank's online services collapse. Which design principle was violated? a. Horizontal scaling — they should have added more servers in the primary site. b. Geographic and dependency diversity — secondary sites must not share the same fate-sharing failure domain (power grid, fiber path, region). c. Zero Trust — they trusted users by network location. d. Defense-in-depth — they did not deploy enough firewalls.

5. A subject-object access decision is failing intermittently for a microservice calling an internal API. Which architectural component is the right place to enforce, validate, and log the relationship between the calling subject and the requested object? a. The reverse proxy in front of the customer-facing web app. b. The Web Application Firewall, because it understands HTTP. c. The API gateway, which authenticates the caller, validates the request, and logs the subject-object access for the protected service. d. The Content Delivery Network, because it is closest to the user.

Answer Key

1. True: WAFs are designed to understand and defend web-layer interactions where untrusted user input reaches the application.
2. True: Microsegmentation narrows allowed communication paths and limits lateral movement opportunities.
3. True: Distributing workload across multiple nodes generally reduces single points of failure.
4. True: NAC is valuable at the onboarding edge because it can condition access on device identity or posture.
5. True: CDNs provide shielding and edge capacity, but the origin still requires sound security architecture.
6. True: Tags and labels help systems automatically apply policy rather than relying on human memory.
7. True: APIs are machine-to-machine trust boundaries and require explicit validation and control.
8. True: Good security metrics help leadership see whether risk is improving, stagnating, or worsening.
9. True: Attestation provides evidence that a device or workload has booted and operates in an expected state.
10. True: Zero Trust does not ban VPN usage; it changes what a VPN connection means.
11. b. IDS out-of-band, IPS inline. IPS can drop traffic, so misconfiguration is felt by production immediately; IDS observes and alerts without affecting flow.
12. b. Reauthenticate based on context. Continuous authorization means access is reevaluated when risk signals change — geography, posture, or behavior — not held constant just because the initial login succeeded.
13. b. DLP must follow the data across layers. A perimeter-only DLP misses the channels people actually use. Modern DLP requires endpoint agents, CASB/web inspection, SaaS-native controls, and storage-layer policy.
14. b. Geographic and dependency diversity. A 30-mile failover site shares the same regional power grid and likely the same fiber path. True resilience requires breaking fate-sharing across power, network, and region.
15. c. The API gateway. API gateways are designed to authenticate the calling subject, validate the request against allowed objects/methods, enforce rate and scope limits, and log the access decision — making them the natural enforcement point for subject-object relationships in service-to-service traffic.
